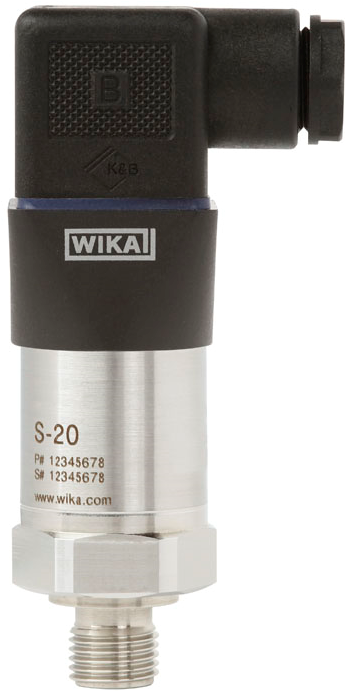

Pressure transmitter Model S-20
for general applications, superior
Non-linearity: 0.25% BFSL
Measuring range: 0...1000 bar gauge
Process connection: G 1/4 A DIN EN ISO 1179-2 (formerly DIN 3852-E)
Sealing: EPDM
Permissible medium temperature: -30...+100°C
Output signal: 4...20 mA, 2-wire
Power supply: DC 8...35 V
Electrical connection: angular connector DIN 175301-803 A
Tailoring electrical connection: mating connector included
Performance Level: without
pin assignment el. connection: U+=1, U-=2
Approvals: cULus
Overpressure safety: see data sheet
Calibration Temperature: 15 ... 25 °C
shock and vibration resistance: 100 g shock, 20 g vibration
Test protocol: with test protocol
Specifications: according to WIKA data sheet PE 81.61
Customer-specific: WIKA standard - specification according to data sheet
Import documentation CIS-States: without
