Artikelomschrijving

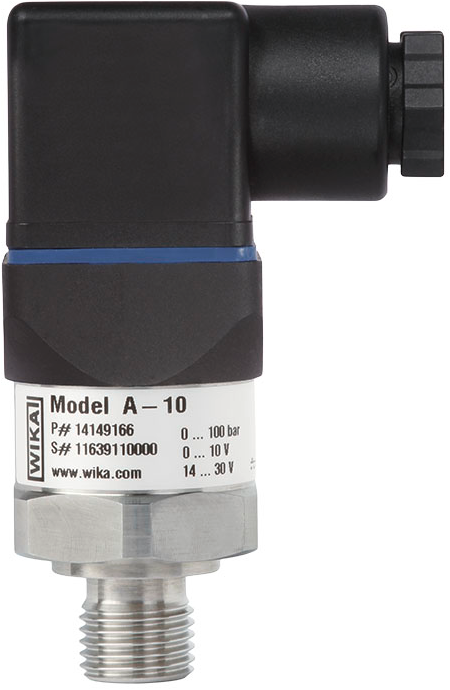

Pressure transmitter Model A-10
for general applications
Specifications according to data sheet: PE 81.60
Wetted parts: 316L
Case: 316L
Non-linearity: 0.5% BFSL
Unit: bar
Pressure type: absolute
Measuring range: -1...+9 bar gauge
Process connection: G 1/4 A DIN EN ISO 1179-2 (formerly DIN 3852-E)
Sealing: NBR
Permissible medium temperature: 0...+80 °C
Output signal: 4 ... 20 mA, 2-wire
Power supply: 8...30 V DC
Electrical connection: valve connector, size A
Model name customer-specific: A-10
Type of packaging: folding box single
pin assignment el. connection: UB=1, 0V=2
Model: A-10 2.0
Import documentation CIS-States: without
