Artikelomschrijving
RLS-1000; Guide tube length: 250,0; 1 switching output

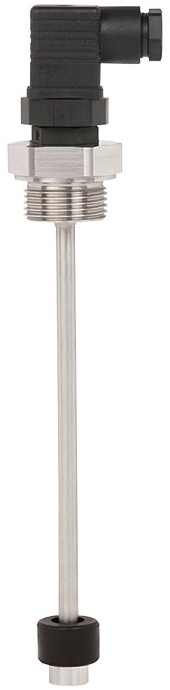

Magnetic float switch, Stainless steel version Model RLS-1000
Output Signal: 1 switching output
Unit of measure switching position: mm
Switching function - Switch output 1 : Normally closed / n.c.
Switch position - Switch output 1 : 170,0
Electrical connection: Circular connector M12x1, IP65
pin assignment el. connection: see product label
Process connection: G 1, installation from outside
Guide tube length: 250,0 mm
medium temperature: -30 °C ... 80 °C
Wetted parts: Stainless steel 1.4571
Float: Cylindrical float Ø 18 mm, Buna/NBR, PN16
Specifications according to data sheet: LM 50.03
