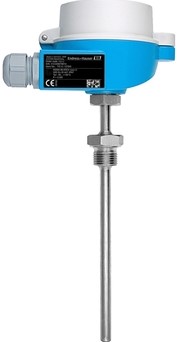

RTD Thermometer TR10-A7H1HHSXGC000+TZ1
Approval: A Non-hazardous area
Head; Cable Entry: 7 TA20B PA black, IP65; M20
Pipe Diameter; Material: H 11 mm; AlloyC276, DIN43772-2G
Neck Length E: 1 80 mm, DIN43772-2G
Process Connection: HH G1/2 male thread DIN43772 AlloyC276
Tip Shape: S Straight
Immersion Length L: X 150 mm ..... mm
Head Transmitter; Range: G **TMT181 (PCP); 4-20mA, temp.range 0-200 °C
RTD; Wire; Measuring Range; Class: C 1xPt100 WW; 4; -200...+600oC; A
Material Certificate: 0 Not needed
Test Report: 0 Not needed
Test/Calibration: 0 Not needed
Tag S141-TT204 en S142-TT207
