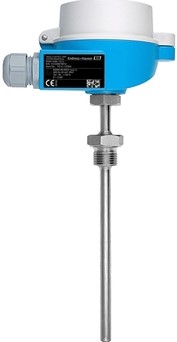

RTD Thermometer TR10-A7H8HHSXGC000+TZ1
Approval: A Non-hazardous area
Head; Cable Entry: 7 TA20B PA black, IP65; M20
Pipe Diameter; Material: H 11 mm; AlloyC276, DIN43772-2G
Neck Length E: 8 119 mm ..... mm
Process Connection: HH G1/2 male thread DIN43772 AlloyC276
Tip Shape: S Straight
Immersion Length L: X 465 mm ..... mm
Head Transmitter; Range: G **TMT181 (PCP); 4-20mA, temp. range 0-200 °C
RTD; Wire; Measuring Range; Class: C 1xPt100 WW; 4; -200...+600oC; A
Material Certificate: 0 Not needed
Test Report: 0 Not needed
Test/Calibration: 0 Not needed
Tag S141-TT201, S141-TT202, S141-TT502, S142-TT205, S142-TT206 en S142-TT502
