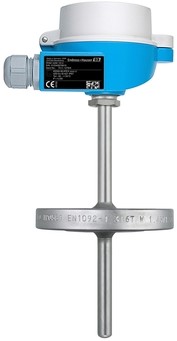

RTD Thermometer TR13-A7B1EASEGC000+TZ1
Approval: A Non-hazardous area
Head; Cable Entry: 7 TA20B PA black, IP65; M20
Pipe Diameter; Material: B 11mm; 316L, Ra<1.6um, DIN43772-2F
Neck Length E: 1 80 mm, DIN43772-2F
Process Connection: EA Flange DN25 PN40 B1 EN1092-1,316L
Tip Shape: S Straight, DIN43772-2F
Immersion Length L: E 225 mm
Head Transmitter; Range: G **TMT181 (PCP); 4-20mA, temp. range 0-100 °C
RTD; Wire; Measuring Range; Class: C 1xPt100 WW; 4; -200...+600oC; A
Material Certificate: 0 Not needed
Test Report: 0 Not needed
Test/Calibration: 0
Tag S141-TT400, S141-TT401, S142-TT400, S142-TT401, S128-TT001 en Spare
