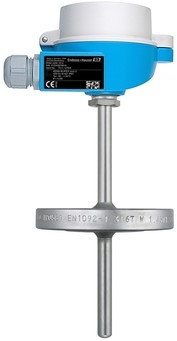

RTD Thermometer TR13-A7H1HASEGC000+TZ1 0-100 °C
Approval: A Non-hazardous area
Head; Cable Entry: 7 TA20B PA black, IP65; M20
Pipe Diameter; Material: H 11mm; AlloyC276, Ra<1.6um, DIN43772-2F
Neck Length E: 1 80 mm, DIN43772-2F
Process Connection: HA Flange DN25 PN40 B1 EN1092-1, C276>316L
Tip Shape: S Straight, DIN43772-2F
Immersion Length L: E 225 mm
Head Transmitter; Range: G **TMT181 (PCP); 4-20mA, temp range 0-100 °C
RTD; Wire; Measuring Range; Class: C 1xPt100 WW; 4; -200...+600oC; A
Material Certificate: 0 Not needed
Test Report: 0 Not needed
Test/Calibration:0
Tag S128-TT501
