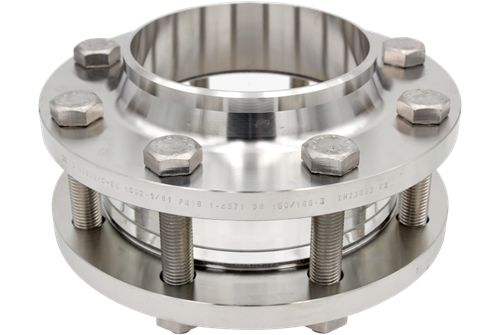

for intermediate flange mounting between two
flanges acc. to ASME B16.5, Class 150 lbs, 12",
Material: borosilicate glass, hardened, polished on all sides,
Tolerances - diameter = ± 1 mm
Tolerances - thickness = ± 1 mm
Dim:
outer-Ø: 381,00 ± 1 mm
inner-Ø: 305,00 ± 1 mm
thickness: 50.00 mm ± 1 mm
Operating conditions:
Operating pressure: max. 10 bar
Operating temperature: -200°C ... max. +280°C
Medium: unknown
Delivery without counter flanges, screws and gaskets.
Customs tariff number: 9206100
Origin: European Union (Germany)
