Artikelomschrijving

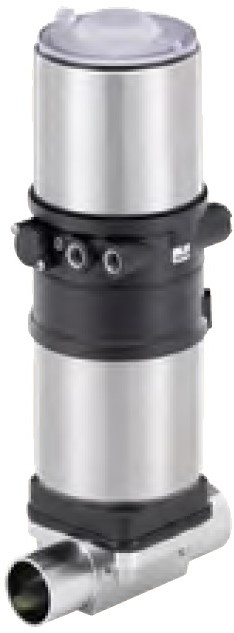

Membraanklep voorzien van las-aansluiting volgens ASME BPE (25,4 x 1,65)
8801-DF-H-A-25,0EU-VS-SODF-N-0-3-0-B-0-0
NK52
Type 8801 8801
Valve type DF diaphragm valve type 2103
Control type H control head type 8691
Control function A closed by spring force
Paths/positions 2 2 ways / 2 position
Orifice size 25,0 25mm (1")
Seal material EU advanced PTFE seat sealing + EPDM
Material VS forged material 1.4435 according to BN2 DIN EN 10222-5, F316L according to ASTM A182/A182M and 316l according to ASME BPE
Port connection SODF Weld end 25,4 x 1,65 (1,000" x 0,065") according to ASME BPE, DIN 11866 series C (usable for BS 4825-1)
Port connection P/R 0000 not applicable
Actuator version G Element design actuator
Actuator size N Dm 90 mm
Interface MG interface LB/diaphragm/housing DN 25
connection of pilot air FA03 interface element-top and remote sensor to element-actuator
Flange pattern FA03 interface element-Top control and remote sensor to Element-actuator
Form of construction 0 without
Function 0 no description
Pneumatic function E3 single acting DN 3,0
Type of actuator 0 without valves
Path sensor 00 without
Supply voltage 3 VIA BUS
Control Y no signal
Electrical connection MP MP multipole
Fluid connection GW G 1/8 / SS
Operating/configuration 0 without
Proximity switch S2 2 positions via linear non-touching distance measuring system
Software acknowledgement 0 without
Additional function 0 without
Communication B AS-interface 62 slaves
Mounting 0000 without
Operating 0 not applicable
Valve block VB1 00 not inserted
Control function VB1 0 no information
Valve block VB2 00 not inserted
Control function VB2 0 no information
Approval system 0 without approval
Accessories 0 without
Surface treatment NO17 Internal electro-polished Ra <= 0,38 micrometer / Ra <= 15 microinch (ASME BPE SF4 / DIN HE4)
Approval component PU02 UL listed for USA and Canada cULus
Bijzonderheden NK52 with certification 3.1
