Artikelomschrijving

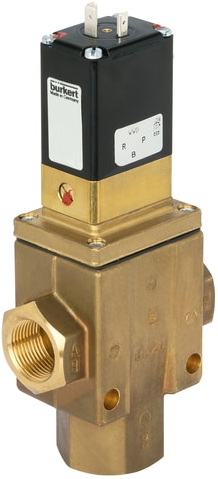

6430-C12,0PBMSGM84-0-230/50-08
Type 6430
Circuit function C 3/2-way; output A relieved in idle position
Orifice size 12,0 12mm (7/16")
Seal material PB PUR + NBR
Material MS brass
Port connection GM84 G1/2 threaded port
Coil size 0 type specific
Voltage 230 volts
Frequency 50 Hz
Power consumption 08 8 watt
Pressure min 1 bar
Pressure max 16 bar
KV 2,60 m3/h
QNN 2.800 l/min
T medium min 0 °C
T medium max 80 °C
T ambient min 0 °C
T ambient max 55 °C
