Artikelomschrijving

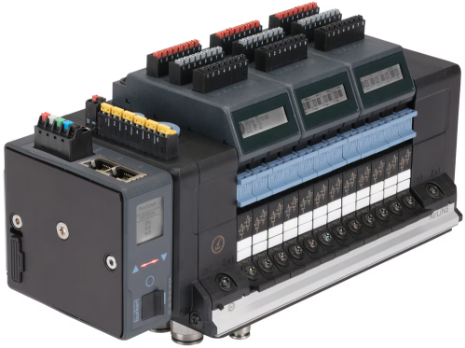

Valve island 8652 4-bank ALQ AL
Type 8652 8652
Number of valve positions 04 4 positions
Number 2x 3/2-ways WWC 04 4 valve positions
2x 3/2-ways WWD 00 no valve position
5/2-ways Monostable WWH 00 no valve position
5/2-way bistable CFZ 00 no valve position
5/3-way CFM medium, vented 00 no valve position
5/3-way CFN medium, exhausted 00 no valve position
5/3-way CFL medium, locked 00 no valve position
Bus connection EET Industrial EtherNet (PROFINET IO, EtherNet IP, Modbus TCP, EtherCAT)
Auxiliary pilot air I Internal
Number of digital inputs 00 no input
El.-Module 1 with DI N No
Pressure port TA31 Tube-plug-connection, external tube-diam. 10 mm
Working port TA22 Tube-plug-connection, external tube-diam. 6 mm
Additional suppy left 0000 without
pressure gauge left 1 without
Additional supply rmiddle 0000 without
pressure gauge middle 1 without
Additional supply right 0000 without
Pressure indicator right 1 without
Degree of Protection 20 IP20
No. of not used positions 00 no position
Shut-off / Check valve 1 with P-shut-off and with check valve
P-plug 0 without P-plug
intermediate feeding 0 without
manual override lockable N No
external power interrupt unit N No
external power interrupt valve N No
AQ stainless steel orifice N without AirLINE Quick stainles steel
Filter 0 without filter
Product version 00 Standard
