Artikelomschrijving

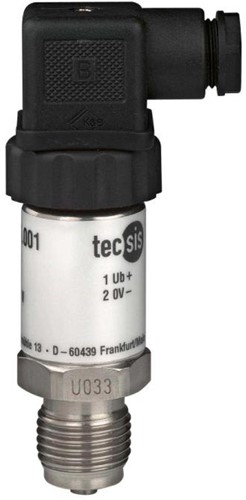

Pressure transmitter for general applica Model S-10
Power supply: DC 10 (14) ... 30 V
Wetted parts: stainless steel
Case: stainless steel
Output signal: 4 ... 20 mA, 2-wire
Measuring range: 0 ... 60 bar
Process connection: G 1/2 B
Accuracy: 0.5% of span
Electrical connection: 4-pin L-plug DIN EN 175301-803, IP65
Permissible medium temperature: -30 ... +100 °C (-22 ... +212 °F)
Power supply: 10...30 V DC
pin assignment el. connection: UB=1, 0V= 2
