Artikelomschrijving

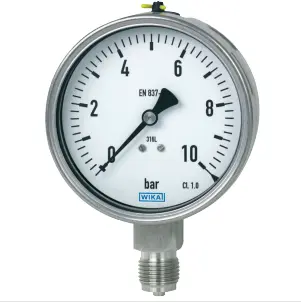

Pressure gauge with Bourdon tube, stainless steel version
Type: 232.50
Technical data according to data sheet: PM 02.02
Measuring system: Stainless steel
Case filling: without
Nominal size: 100 mm
Display range: 0...6 bar
Process connection: G 1/2 B
Connection position: bottom
Viewing window: Multi-layer safety glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Measuring system material: 316L measuring system
Protection class: IP 65
Permissible medium temperature: + 200 °C
Permissible ambient temperature: -40 ... +60 °C
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
with serial number
QR code with extended serial number on dial
