Artikelomschrijving

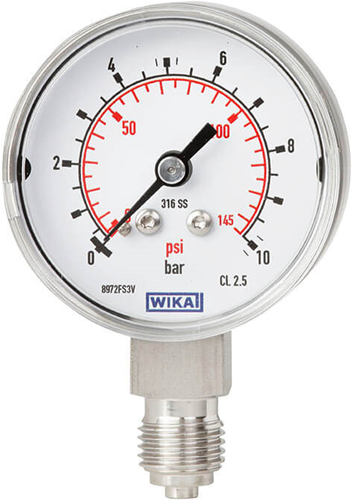

Bourdon Tube Pressure Gauges, Stainless Steel
Series
Model: 232.50
Specifications according to data sheet: PM 02.02
Measuring system: stainless steel
Case filling: without
Nominal size: 100 mm
Scale range: -100...+1500 kPag
2nd Scale or Special Scale: 2nd scale psig
Process connection: 1/4 NPT
Connector location: lower mount
Window: laminated safety glass
Pointer: adjustable pointer
Set / drag pointer: red set pointer on dial
Accuracy class: +/- 0.5% ASME B40.100 Grade 2A
Material pressure element: Measuring System 316L
Ingress protection: IP 65
Permissible medium temperature: + 200 °C
Permissible ambient temperature: -40 … +60 °C
Pressure Gauge Standard: US-Standard
color for 2.scale (inside): red RAL 3020
Manufacturer logo: *WIKA®*
with Serial number
QR code with extended serial number on dial
mechanical pressure gauge
