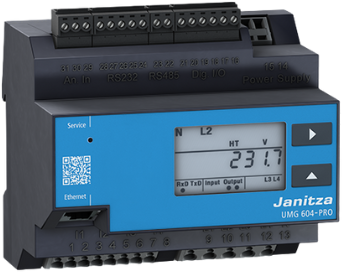

Electrical disturbances, whether they are short interruptions, voltage dips, or harmonics, can have far-reaching consequences for critical applications such as hospitals, data centers, and the process industry. These disturbances can lead to high costs and unforeseen downtime. The Janitza UMG 604-PRO Power Analyser not only promises to recognize these problems but also enables users to intervene directly by sending notifications via email.
The UMG 604-PRO is not just any power analyser. The device combines several functions, including a PQ analyser, kWh meter with 8 tariffs, IP gateway, logger, PLC, and web server - all housed in one compact enclosure.
With the integrated web interface of the UMG 604-PRO, users can directly view the power quality status of their installation. This website is user-friendly and accessible via various devices, from PCs to smartphones. Moreover, the analyser offers the possibility to automatically generate reports for voltage and current according to the prevailing IEC 61000-2-4 standards, thus quickly identifying and addressing any problems.
Technically, the UMG 604-PRO performs Fourier analyses up to the 40th order and determines more than 800 variables every 200 milliseconds. In addition, there is continuous sampling of all voltage and current channels at 20kHz, allowing the device to perform accurate measurements and analyses.
Thanks to various protocols, including RS485 (Modbus RTU and Profibus) and Ethernet TCP/IP, the UMG 604-PRO can be easily integrated into existing installations.
Main features of the UMG 604-PRO power analyser:
- Analyses consumption, disturbances/events, and power quality
- Detection of short interruptions, dips, harmonics, and slow voltage variations
- Notifications via email
- Combines functions: PQ analyser, kWh meter, IP gateway, logger, PLC, and web server
- Integrated web interface accessible to 5 different devices simultaneously
- Automatic reporting of power quality according to IEC61000-2-4 standard
- Integrated temperature measurement, input for pt100/pt1000
- Measurement of power quality parameters up to the 40th harmonic order
- Recording of transients
- Storage capacity of 510 million measurement values in 128Mb memory
- Including English-language configuration software GridVis® essentials.
