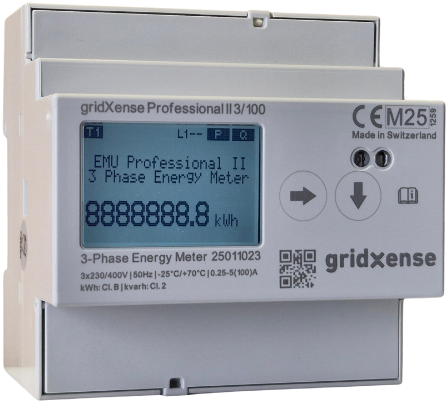

The gridXense Professional II 3/100 LoRa is an electronic 3x 230/400VAC 3-phase kWh meter for DIN-rail mounting and direct measurement up to 100A. The meter has various functions including measuring actual and reactive consumption, calculating the power factor (cos phi), and providing clear insights into consumed and generated energy (import/export). The meter is equipped with an integrated LoRaWAN wireless interface with an integrated antenna and can be configured via a downlink.
The meter is MID B & D approved for billing purposes, certified for PV systems (according to DIN CLC / TR 50579: 2012) and suitable for energy management systems according to ISO50001. It is fully compatible with the gridXense energy management software for monitoring and obtaining a clear understanding of all consumption data. The meter is protected against tampering and has a sealable connection cover. Additionally, all configurations are logged and archived.
Specifications of the gridXense Professional II 3/100 LoRa:
- Installation: 35mm DIN-rail or front installation using a mounting frame
- Dimensions (width x height x depth): 90 (5TE) x 91 x 72mm
- LCD display: 38 x 28mm, 8 digits with backlight
- Protection class: housing IP51, connections IP20
- Environmental conditions: electrical E2, mechanical M2
- Suitable for: energy import & export - consumption & production
- Frequency range: 40-65Hz
- Nominal voltage (Un) N-L: 230V (+/-20%)
- Nominal voltage (Un) L-L: 400V (+/-20%)
- Nominal current (In): 100A
- Communication interface: LoRaWAN according to EU863-870MHz and EU433MHz, device class C
- Additional communication interface: S0, optical
- High IoT security through programming in blockchain technology
- Pulse frequency and length: 1 - 10,000 pulses per kWh / kvarh, adjustable incl. pulse length
- Measurement of actual and reactive consumption in 4 quadrants
- Energy tariff classes: 4-tariff
- Tariff control: internal
- Calibrated: yes
- Approved: MID
- Accuracy class: B
