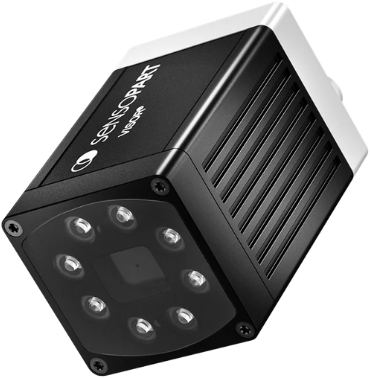

V10-CR-S3-I-MD-M2 | Vision sensor, code reader, infrared LED's, motoric focus

V10-CR-S3-I-MD-M2
Ask for quotationAdd to wish list
 Delivery time on request
 Request a quote or contact
Add to favorites
  • Product description and specifications
  • Documents
  • Related products
  • Ask a Question

Product description

The SensoPart VISOR® Vision Camera is suitable for solving the most challenging detection problems. Whether it's simple detections or advanced robotic applications, a solution is always possible with these vision cameras. From object detection and distance measurement to colour recognition, (bar)code recognition and crack control, the VISOR® vision system from SensoPart provides the perfect solution.

The VISOR® vision camera is equipped with integrated software, making it a stand-alone solution. The free software to set up the vision camera is very user-friendly, making setup a breeze.

The cameras are standard equipped with LED lighting in various colours, including white, red, infrared or UV-Diode, so you always have the right lighting option for your application.

Applications of the VISOR® vision camera:
  • Automation tasks
  • Error checks in assembly or packaging
  • Counting of products or parts
  • Measuring distance, thickness, and length
  • Detecting transparent objects
  • Reading codes/barcodes/labels
  • Models available with "Classification (AI)"

Documents

Specifications

Imaging chipMonochroom
PrincipleCodereader
Images per second75
Light typeLED, infrared
Output2 outputs
SeriesV 10
TypeStandard
Size71 x 45 x 45 mm
Communication interface

A communication interface is a physical or software-based connection between two systems or devices, enabling them to communicate and exchange data.

Communication interfaceProfinet
Ethernet IP
Ethernet (LAN)
SensoWeb
Digital inputs2 inputs
Programmable I/O4 inputs or outputs
LensMedium
Resolution800x600 (0,5MP)
BrandSensopart
CategoryVisor Code Reader
Product codeST502714
Supplier code631-91071
Unitst
