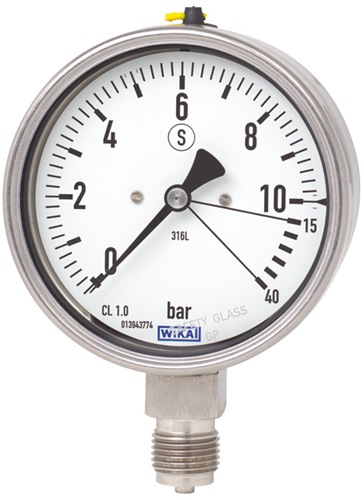

Design
Safety pattern (Solidfront) referring to EN 837-1
Nominal size
100 and 160 mm
Measuring range (bar) Overpressure range up to ... bar
-1 ... 0 3
0 ... 0,6 2,5
0 ... 1 4
0 ... 1,6 6
0 ... 2,5 10
0 ... 4 16
0 ... 6 25
0 ... 10 40
0 ... 16 60
0 ... 25 80
0 ... 40 100
Accuracy class
Measuring range: 1.0
The measuring range end is marked by a triangle
Pressure limitation
Steady: end value of measuring range
Fluctuating: 0.9 x end value of measuring range
Short time: Overpressure range
Permissible temperature
Ambient:
-40 ... +60°C without liquid filling
-20 ... +60 °C gauges with glycerine filling (Model 233.36 )
Medium:
+200 °C maximum without liquid filling
+100 °C maximum with liquid filling (Model 233.36 )
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C):
max. ±0.4 % / 10 K of full scale value
Ingress protection
IP 65 per EN 60529/IEC 529
