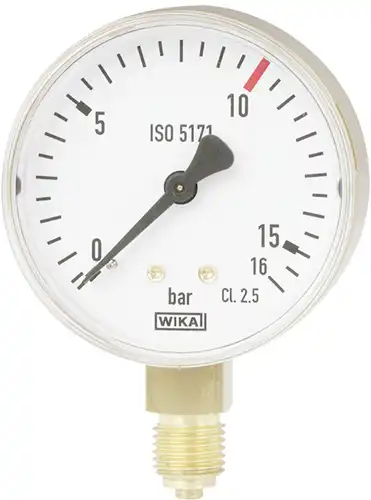

Applications
- For equipment and plants for welding, cutting and allied processes
Special features
- Design ISO 5171
- Pressure relief in case back
- Reliable and cost-effective
Design
ISO 5171
Nominal size in mm
40, 50, 63
Accuracy class
2.5
Scale ranges
Welding engineering standard ranges for oxygen and acetylene to ISO 5171, as well as 0 ... 1 to 0 ... 400 bar to EN 837-1
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
