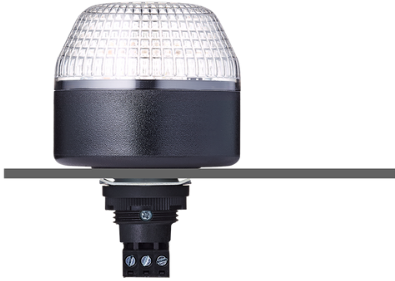

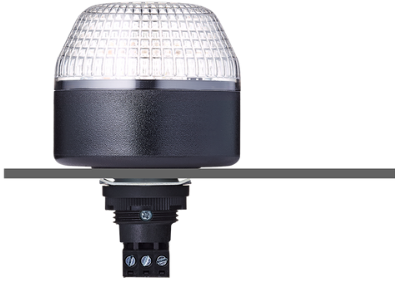

The IBL M22 is a compact LED signal and flashing beacon with a diameter of 65 mm, suitable for panel mounting in a wide range of industrial and general applications. Thanks to modern LED technology, this beacon offers a clear signalling effect, with both steady and flashing light modes, switchable externally.
The beacon is designed for panels with a Ø 22.5 mm (M22) mounting hole. An adapter is available for Ø 30.5 mm panel size. The robust housing is made of UV-stabilised polycarbonate and available in black (RAL 9005) or grey/white (RAL 7035). The internally ribbed lens is available in various colours: transparent, red, orange, blue, green or yellow.
Key features:
- Compact design with high impact resistance (IK07)
- Protection class IP65 (IP67 available for pre-wired versions)
- Suitable for voltages: 24 VAC/DC, 12 VAC/DC, 110120 VAC or 230240 VAC
- Equipped with 12 durable LEDs with a service life of 100,000 hours
- Flash frequency: 2 Hz
- Continuous operation (100% duty cycle)
- Operating temperature: -25 C to +60 C
- Connection via screw/plug-in terminals (2.5 mm)
- Mounting position: freely selectable
- Minimum installation depth: 34 mm
- Pre-wired cable version available on request (IP67)
The IBL M22 LED signal and flashing beacon is a versatile and practical solution for visual signalling in control cabinets, control panels, and industrial installations.
