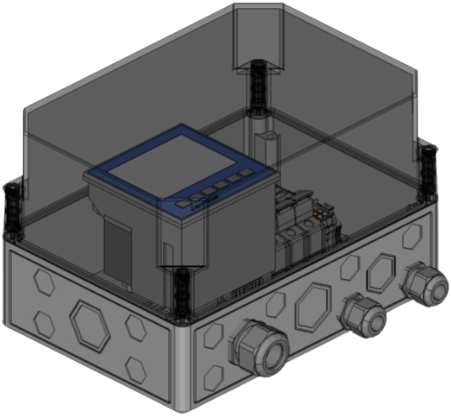

Measurement Cabinet Model UMG 96-PQ-L-LP including 3x Rogowski coil 200mm
- Type: Measurement Cabinet UMG 96-PQ-L-LP (TCP/IP + RS485)
Based on:
- 1x UMG 96-PQ-L-LP (JA100496)
- 3x Rogowski coil 200mm (JA901972)
- 1x Module UMG 96-RCM-E | Extension Module (JA900119)
Specifications:
- Voltage: 230/400Vac 50Hz
- Current measuring range: 0-8000A
- Protection grade: IP54
- Output: Modbus RS485
- Dimensions (WxHxD): 254 x 180 x 165mm

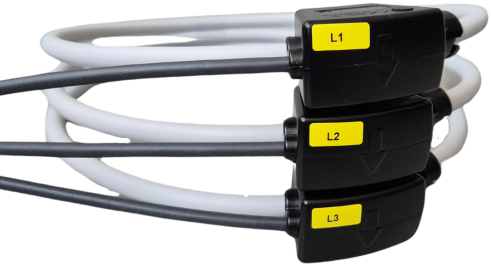

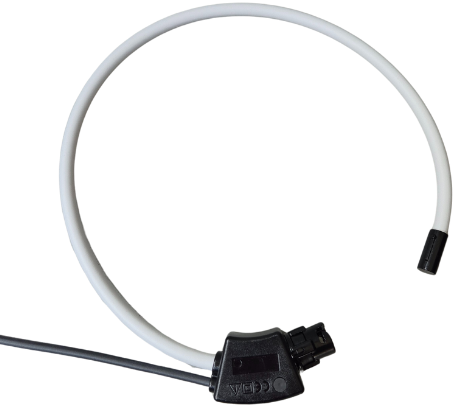

Rogowski Flex CT’s:
- Diameter: 200mm
- Length of measurement lead: 3m

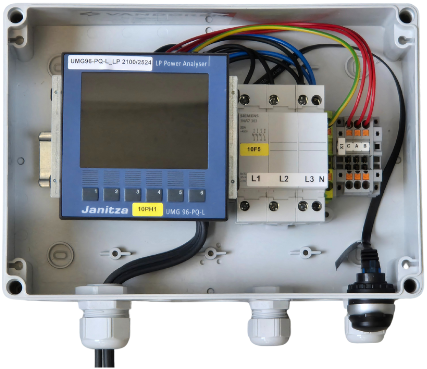

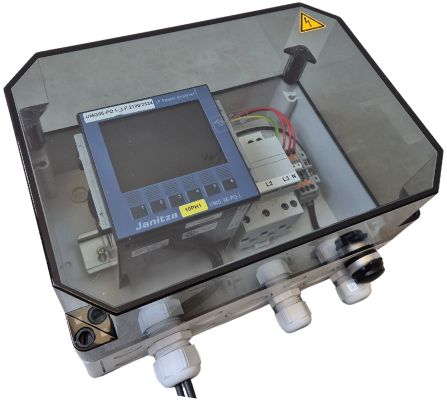

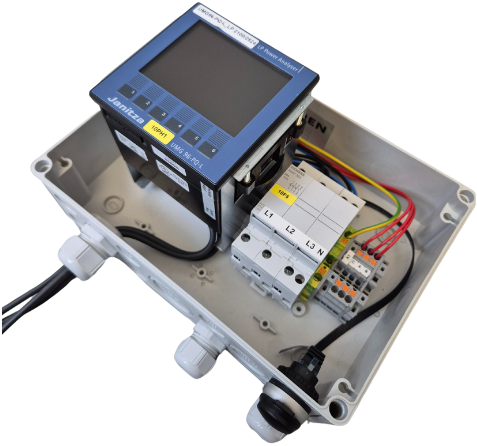

The measurement cabinet is further equipped with:
- Siemens Sentron fuse holders 3-phase + neutral and 6A fuses
- Earthing clamp
- Connection terminals for Modbus RS485, A, B and C for the earth screen
- Cable glands for the power and Modbus cables
- Mounting eyes
Pre-set parameters:
- Device address: 1
- Baud rate: 115.200
- CT ratio: 1000A/100mV (Rogowski)
- Voltage ratio: 400V/400V
