The Janitza UMG 806 is a modular energy analyser designed to meet various requirements in energy management and monitoring. These requirements include accurate energy measurement, monitoring of current and voltage levels, regulatory reporting, energy efficiency insights, and energy problem detection.

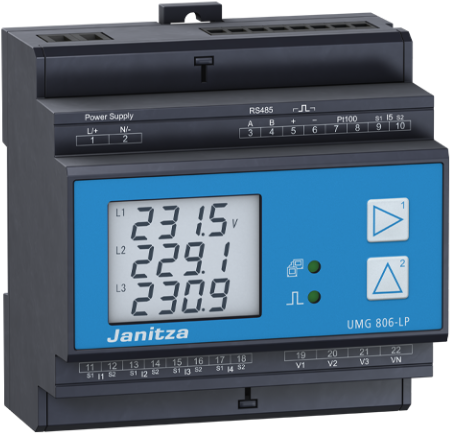

Two modelsThe UMG 806 is available in two models: the standard version (UMG 806) and the LP version (low power - UMG 806-LP). The standard version supports conventional current transformers of 1/5 A, while the LP version is specifically designed for low power current transformers (333 mV).
Advanced features
The UMG 806 offers an extensive range of advanced features and capabilities, including four voltage and current channels, residual current measurement, a thermistor input, and a pulse output. The meter supports communication via onboard Modbus-RTU, as well as Modbus-TCP and SNMP V2c via a module. Regarding power quality, the UMG 806 provides harmonic analysis up to the 31st harmonic and has 4 MB of internal memory for data logging.
RCM support and DIN-rail applicationThe UMG 806 energy analyser is also equipped with an RCM input and is compatible with the RCM 202-AB module for retrofit of Type A and Type B measurements. Energy consumption is visualized using a digital dial indicator, measuring both electrical properties and energy consumption. Finally, the device is ideal for DIN-rail applications in data centers and industrial environments.
Main features of the Janitza UMG 806/UMG 806-LP:
- Available in two models: standard version (for 1/5 A current transformers) and a LP version (for 333 mV low power current transformers)
- Compact design for easy installation in confined spaces
- Supports communication protocols such as Modbus-RTU, Modbus-TCP, and SNMP V2c
- Built-in RCM monitoring for continuous electrical network supervision
- Residual current measurement with adjustable alarm thresholds
- Four current measurement channels
- Thermistor input for temperature monitoring
- Measures harmonics up to the 31st order
- 4 MB internal memory for long-term data storage
- DIN-rail mounting for easy installation
