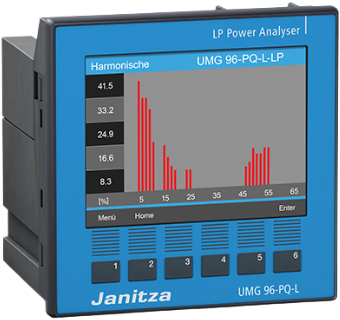

The UMG 96-PQ-L Class S power analyzer is an advanced and versatile measuring instrument for monitoring energy consumption and electrical parameters in critical environments. Within the 96 series, this modular device primarily offers comprehensive voltage quality analysis. Additionally, the UMG 96-PQ-L also features functions such as ground fault current measurement and temperature monitoring.
Thanks to a special data compression method, the UMG 96-PQ-L can store up to 15 years of measurement data. The device can be used in normal TN/TT systems as well as IT systems and provides accurate measurements of voltages and currents. The analyzer uses a sampling frequency of 13.67 kHz and performs Fourier analyses for the 1st to the 65th harmonics.
The UMG 96-PQ-L is equipped with a user-friendly graphical color display and can be expanded with plug-in modules for additional functionality. This versatile instrument is ideal for monitoring and analyzing energy consumption and electrical parameters in various applications and environments. With its extensive functionality and adaptability, the UMG 96-PQ-L is a valuable addition to any energy management system.
Main features of UMG 96-PQ-L power analyzer:
- Compact: 96 x 96mm size
- Functionalities: kWh registration, faults, power quality, ground fault, and temperature monitoring
- Memory: 15 years storage for current and power; three types of memory
- Communication: Modbus RS485, expandable to TCP/IP
- Display: graphical color display with oscilloscope and vector diagram
- Voltage quality: harmonics up to the 65th, 280 samples per period
- Installation: 600V CAT III, suitable for IT networks
- Energy management: Class 0.2S accuracy
- Modularity: temperature monitoring, Ethernet interface, ground fault current measurements
- Inputs and outputs: 3 digital outputs, 1 analog output, 3 digital inputs
- Operation: 6 buttons via display, customizable home screen
