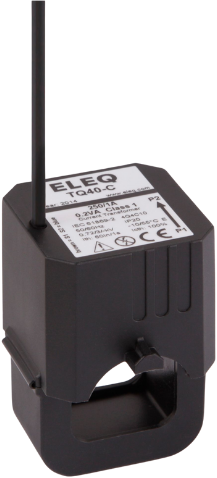

Split-core Low Power Current Transformers (LPCT) – wide measuring range & high accuracyMeasure reliably. Install easily. Save time.The split-core Low Power Current Transformers from ELEQ combine accuracy, safety, and flexibility in one compact solution. Thanks to the Wide Range technology, you can measure over an exceptionally large range – for example from 3 to 300 A – with just one type of transformer.
Quick and safe installation
- Split-core design – easy to install without disconnecting power
- Ideal for retrofit projects or installations where downtime is not an option
- Compact, robust, and low-maintenance
- Suitable for use around insulated cables
Low Power output (333 mV)
- Directly connectable to compact Janitza devices (such as UMG 96-PQ-L-LP or 800-CT8-LP)
- No short-circuit terminal block required - safe, practical, and cost-effective
- Standard lead length 5 m
- Leads can be easily extended by 5 m using the extension kit FT102441
- Perfectly suited for modern measuring systems with a 333 mV input
Wide Range technology
- One product suitable for a very wide measuring range
- Models available for 3–300 A, 5–480 A & 10–960 A
- Fewer models in stock, easier engineering
Reliable ELEQ quality
- Tested and protected against short-circuit currents
- Designed and tested according to the latest standard (IEC61869-10)
- Made in Holland – no cheap compromise components
- Reliable measurements and long service life
