The static var generator (SVG) is considered the successor to capacitor banks (cos phi bank). In addition to inductive reactive power, an SVG also compensates capacitive reactive power and phase imbalance. Thanks to the use of 3-level SiC technology, these SVGs are particularly energy-efficient.
Application:
- Industrial installations
- Better utilisation of your capacity for connections up to and including 3x250A
- Relieving the neutral conductor
- Achieving grid compliance (continuous control of cos phi to 1)
- Improving the energy efficiency of the installation (up to 2% reduction in CO2 emissions and kWh)
SVG benefits:
- Compensates both inductive and capacitive reactive power
- Fast response time (<15ms)
- Fast and stepless, preventing over- or under-compensation
- Low weight (100 kvar < 25 kg!)
- Compact dimensions
- Not overloadable and insensitive to resonances and harmonics
- Low maintenance
Notes:
- The SVG must be installed in a lockable technical room that is climate-controlled and dust-free.
- For optimum filtering performance, we recommend having the filter commissioned by a Fortop engineer.
Features:

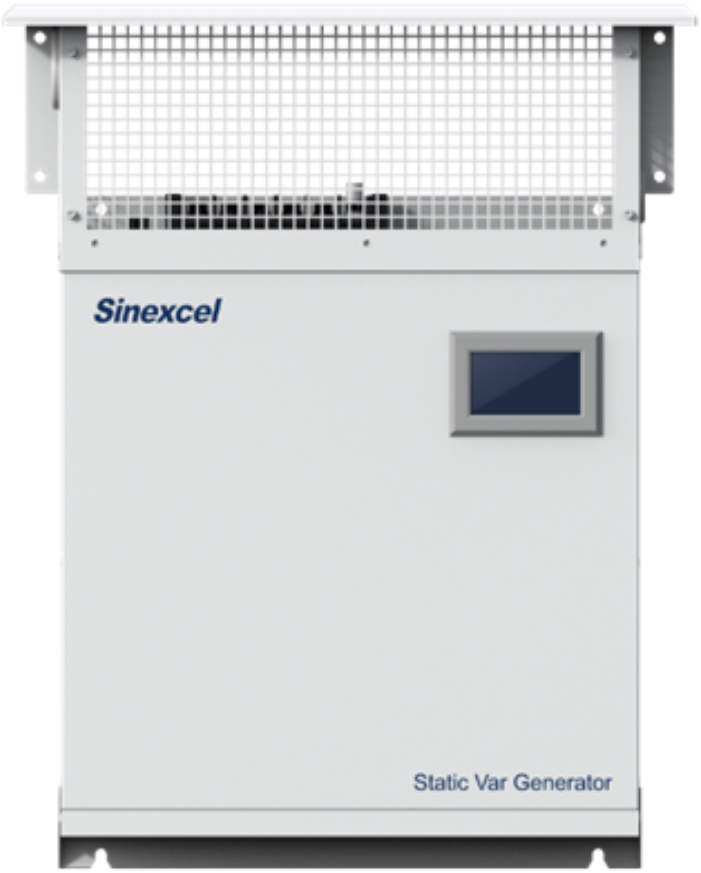

- Supplied including IP21 protective cover
- Compact dimensions
- Voltage 230/400V
- Efficiency 99%
- Built-in 4.3" HMI for monitoring and configuration
- Modbus TCP over IP and Modbus RTU over RS485
