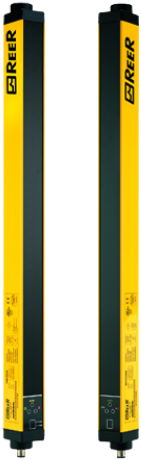

AX 1205S | Safety light curtain, Type 4, monitoring, slave

AX 1205S
£ 1.900,00 Processing... Ask for quotationAdd to wish list
Delivery time: approx. 4 weeks

Add to favorites

No product information available.

	Principle	Through-beam sensor
	Detection height (mm)	1210 mm
	Switching distance	18000 mm
	Output	2 PNP, 500mA
	Connecting type	Connector M12 5-pin
	Series	Admiral
Safety In machine safety, Performance Level (PL) and Category (Cat) are often used to assess the safety of a machine. PL describes the safety performance of a safety system based on the likelihood of dangerous errors. Cat describes the safety measures based on the risk analysis of the machine.	Safety	Type 4 Cat 4 Pl e
	Resolution	50 mm
	Detection	Body
Master - slave The master-slave configuration is a safety technology used in light curtains where one light curtain operates as the master and the other as the slave. Both must be activated for safe passage. If the signal is interrupted, the passage is stopped to prevent hazards.	Master - slave	Slave
	Monitoring	Internal monitoring
	Protection standard	IP 65
	Brand	ReeR
	Category	Safety light curtains
	Product code	RR100115
	Supplier code	1334447
	Unit	st
