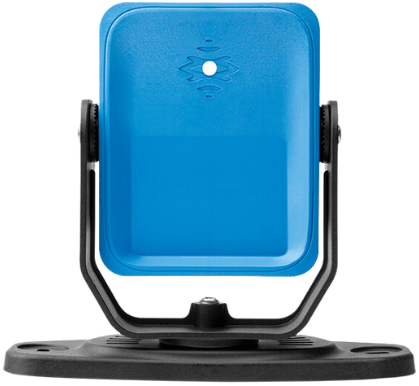

The Inxpect S202A-MC series consists of 3D safety radar sensors for presence and motion detection in industrial applications. The sensors operate using 60 GHz radar technology and detect objects and people in three dimensions. Within a single sensor, one or multiple three-dimensional detection zones (cuboids) can be defined, allowing the protection to be precisely aligned with the actual risk areas around machines and robots.

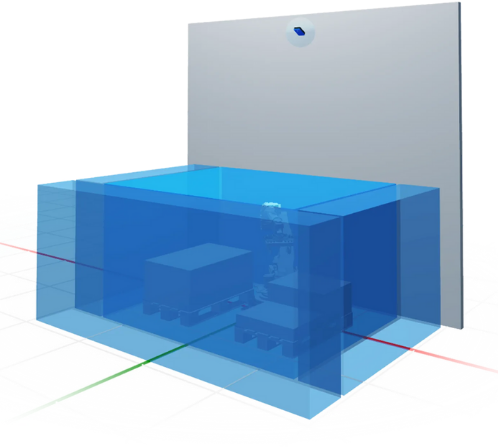

Configurable 3D zones (cuboids)
The detection zones can be freely positioned in space. Each zone is configurable in shape, size and position. The sensors can be mounted at any desired height, with up to a maximum of 16 dynamic fields available. This allows safety zones to be precisely matched to the machine geometry, without using one large generic detection field.
Three models within the series

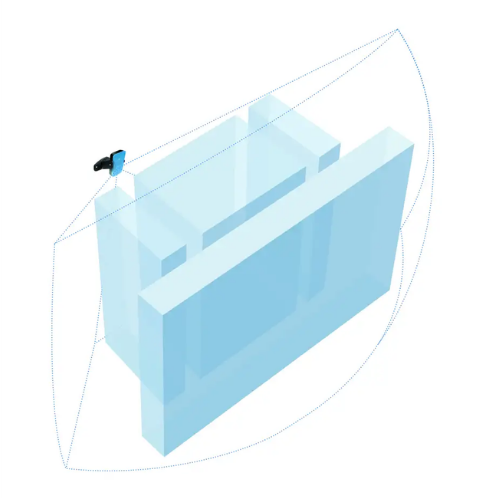

The S202A-MC series is available in three versions. The S202A-MC1 supports one cuboid, the S202A-MC2 supports two cuboids, and the S202A-MC4 supports up to four separate cuboids within a single sensor. This allows multiple safety zones to be monitored with one radar sensor, reducing the number of required sensors, as well as cabling and mounting points.
Reliable detection and integration

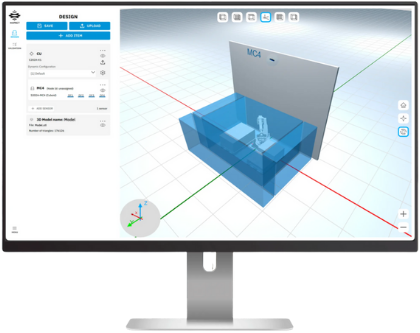

The sensors in the S202A-MC series operate reliably under a wide range of industrial conditions and continue to function flawlessly in the presence of dust, smoke, vapour and changing light conditions. The sensors are housed in an IP67 enclosure and equipped with standard M12 connectors, making integration into existing installations straightforward. Configuration and validation are carried out via the Inxpect Safety Studio software, in which the cuboids are clearly displayed in 3D. The sensors are connected to an Inxpect controller that processes the safety signals and controls the outputs.
Key features S202A-MC series:
- 3D safety radar sensors for presence and motion detection
- One or multiple three-dimensional detection zones (cuboids) per sensor
- Free positioning of detection zones in space
- Configurable zones in shape, size and position
- Adjustable detection zones with a maximum range of 5 metres
- Mounting possible at any desired height
- Up to a maximum of 16 dynamic fields per sensor
- Reliable operation in dust, smoke, vapour and changing light conditions
