- PP and PVDF version available
- Very compact design
- For small tanks
- Optimized chemical compatibility
- output: reed contact
- connection: cable
- cable type: AWG30, 2-core, PVC, 1m
- contact parts: N / O or N / C depending on the installation

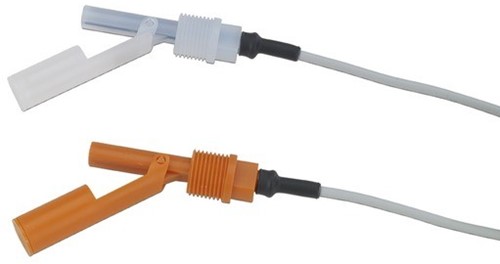

The Guided float switch is designed for economical control of liquids in tanks. The switch is remarkable for its maintenance-free compact design and reed contacts with high switch capacity. It can easily be installed in water applications as well as in chemical applications.
The encapsulated reed contact is operated by the magnet. The switching function (N/O contact/N/C contact) is determined by the installation position. The switching function is reserved by simply rotating the switch through 180 °.
Standards:
•CE RoHS conform
Application areas:
•Demineralized water
•Chemicals
•Water / Glycol solutions
• cooling water
