Product description

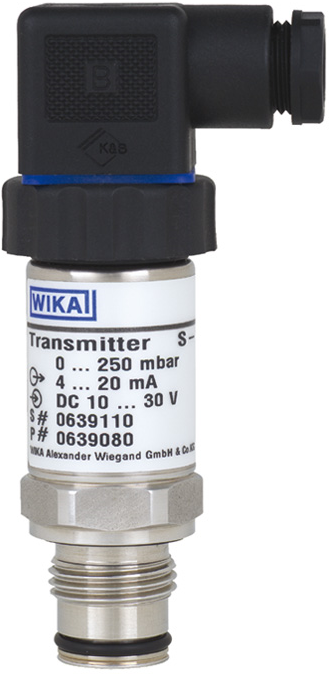

Pressure transmitter for general applications
Model S-11
with flush diaphragm
Specifications according to data sheet: PE 81.02
Power supply: DC 10 (14) ... 30 V
Case: stainless steel
Output signal: 4 ... 20 mA, 2-wire
Measuring range: 0 ... 160 mbar
Process connection: G 1 B flush diaphragm with O-ring
Wetted parts: stainless steel and O-ring from NBRAccuracy: 0.5% of span
Electrical connection: 4-pin L-plug DIN EN 175301-803, IP65
Permissible medium temperature: -30 ... +100 °C (-22 ... +212 °F)Power supply: 10...30 V DC
pin assignment el. connection: UB=1, 0V=2
Certificates: withoutImport documentation CIS-States: without
