PN 100 / PN 200
Carbon Steel
Stainless Steel
EU-Declaration by the manufacturer
as defi ned by Machinery Directive 98/37/EC (former 89/392/EWG, Annex II B), we herewith declare that the globe valves have been developed and designed by applying the following harmonised standards:
- EN 292 Safety of machinery
- EN 983 Safety requirements for fl uid power systems and components - Pneumatics
- EN 60204-1 Electrical equipment of machinery
Advice
These butterfly valves are intended to be incorporated into machinery compounds. Putting into operation of the machinery is not allowed until such time as the entire machinery is proving to comply completely with the EU Directive.
SPECIFICATION:

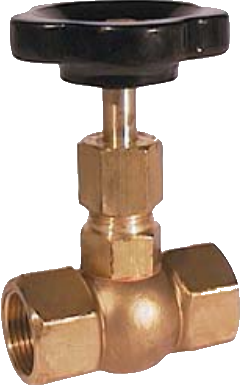

DESIGN
Body consists of 2 screwed parts, with screwed top.
OPERATION
Rotation of the handlewheel.
CONNECTION
Female B.S.P. thread 1 /8 - 2, DIN 259
PRESSURE RANGE*
- EBAC1010xx(Brass) PN 100
- EBAC4010xx(carbon steel) PN 200
- EBAC3010xx(stainless steel) PN 200
TEMPERATURE RANGE
- EBAC1010xx: -30°C up to max. 100°C
- EBAC4010xx: -150°C up to max. 350°C
- EBAC3010xx: -90°C up to max. 250°C
MATERIALS
EBAC1010xx (Brass)
- Body Cu Zn 39Pb3F37
- Bonnet Brass (Ms58)
- Spindle Brass (Ms58)
- Packing bottom-ring Brass (Ms58)
- Spindle seal:
- G1 /8 - G1 /2 = NBR
- G3 /4 - G2 = PTFE
- Packing nut Brass (Ms58)
EBAC4010xx (Carbon Steel):
- Body 9 S 20 K
- Bonnet 9 S 20 K
- Spindle 1.4104
- Packing bottom-ring 1.4104
- Spindle seal Graphite
- Packing nut 9 S 20 K
EBAC3010xx (Stainless Steel):
- Body 1.4571
- Bonnet 1.4571
- Spindle 1.4571
- Packing bottom-ring 1.4571
- Spindle seal PTFE
- Packing nut 1.4571
Handwheel Plastic
The above information is intended for guidance only and the company reserves the right to change any data herein without prior notice!
