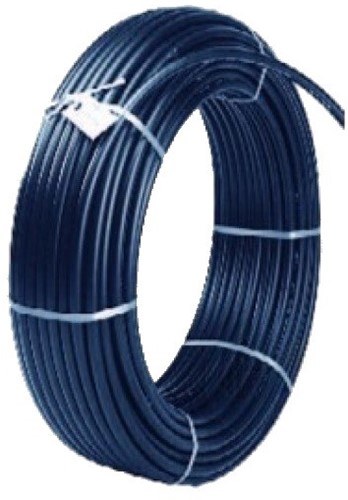

High Density Polyethylene hose air hose (HDPE) metric. The material of the HDPE air hose is approved for contact with food according to FDA CFR 177.1522 (c) 3.2a and EU Directive 2002/72 EC. Tolerance for push-in couplings +/- 0.10 mm Available in black and sizes 6/4, 8/6, 10/8 and 12/10 on rolls of 100 meters!
Physical properties / data / unit / test method
Density 0.96 g / cm 3 ISO 1183-D
Flexural modulus 1100 MPa ISO 178
Extension at break 950% ISO 527
Tensile strength of 36 MPa ISO 527
Vicat softening temperature of 129 ° C, ISO 306-A / 120
Hardness 67 Shore D ISO 868
Mechanical properties
Penetration, cast 29.0 MPa ISO 527-2 / 50
Break, compression molded 36.0 MPa ISO 527-2 / 50
Current range (break, pressure) 950% ISO 527-2 / 50
Art # 10098722 HDPE 6x4x1mm black, working pressure at 23 ° C is 20 bar, bending radius 40 mm
Art # 10098723 HDPE 8x6x1mm black, working pressure at 23 ° C is 14 bar, bending radius 50 mm
Art # 10098724 HDPE 10x8x1mm black, working pressure at 23 ° C is 11 bar, bending radius 75 mm
Art # 10098725 HDPE 12x10x1mm black, working pressure at 23 ° C is 9 bar, bending radius 100 mm
