- Intelligent air supply unit for energy-efficient operation of pneumatic systems
- Connection G1/2
- Flow rate 4500 l/min.
- Pressure tightness testing
- Pressure indication
- Flow rate indication
- Consumption indication
- Fieldbus connection

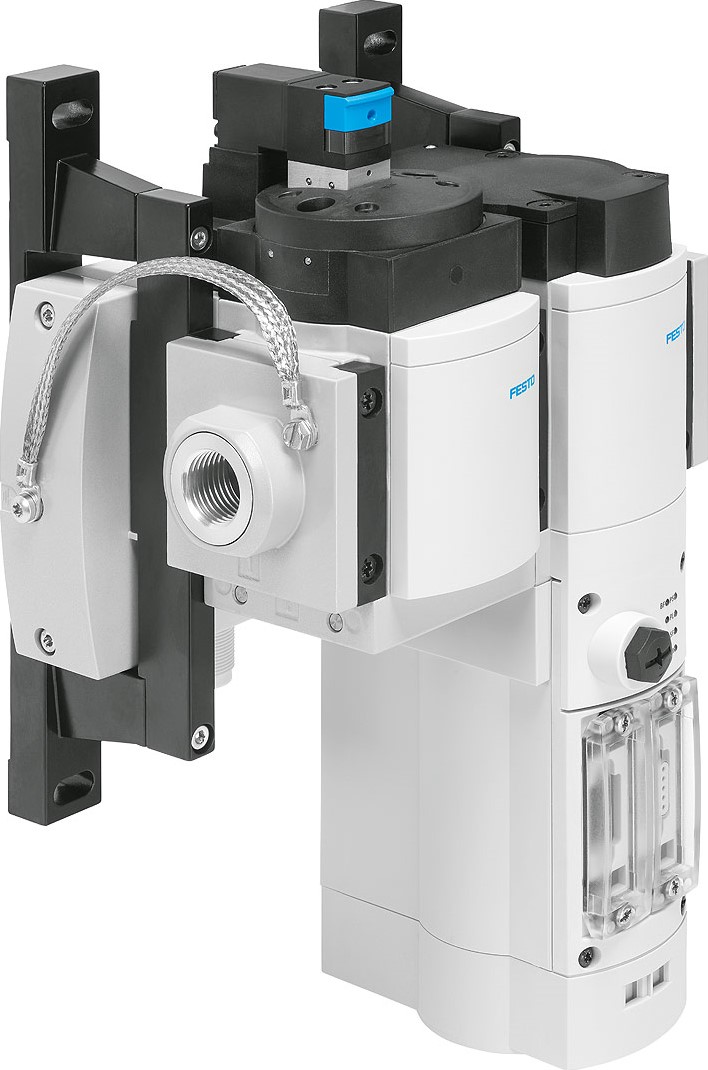

The MSE6-E2M is an intelligent pneumatic service unit for optimizing the use of compressed air as an energy source in industrial automation technology. Because the MSE6 is equipped with measuring, control and diagnostic functions, the MSE6-E2M supports energy-efficient operation of pneumatic systems. The MSE6-E2M detects increased compressed air consumption in the standard production cycle that may be caused by, for example, leaks and then provides targeted system maintenance. Furthermore, the MSE6-E2M detects when the production is in a standby state and stops the supply of compressed air to prevent unnecessary use of compressed air. The MSE6-E2M can also be used as a process monitoring module by allowing flow and pressure values ??and these are transferred directly to the machine via a fieldbus connection where they can be analyzed.
| Function |
Energy efficiency module |
| Pneumatic connection |
Connection plate G1/2 |
| Mounting position |
Horizontal ±5° |
| Electric connection |
Plug connector M18x1, 4-pin |
| Protection class |
IP65 |
| Pressure (bar) |
4 ... 10 |
| Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Temperature medium (°C) |
0 ... +50 |
| Certificate |
RCM Brand |
| Housing |
Cast aluminum |
