- Connection: G1/2, G3/4, G1, G1 1/4, G1 1/2
- Flow rate: 8000 ... 18000 l/min

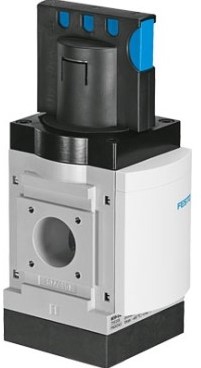

Manually operated on-off valve for pneumatic pressing and venting of installations.
| Function |
Manually operated on-off valve
|
| Connection size/pneumatic connection |
G, Module without jumper, without connecting plate |
| Grid size |
90 mm. |
| Pressure (bar) |
0... 20 |
| Medium |
Compressed air according to
ISO 85731:2010 [7:4:4] |
| Temperature medium (°C) |
-10 ... +60 |
| Noise class (dB (A)) |
93 with silencer |
| Corossion resistance class CRC |
2 |
| UL certificate |
cULus recognized (OL) |
| EU certificate |
EX4, II 2G
c T6 X
II 2D
c 60 °C X |
| Housing |
Cast aluminum |
