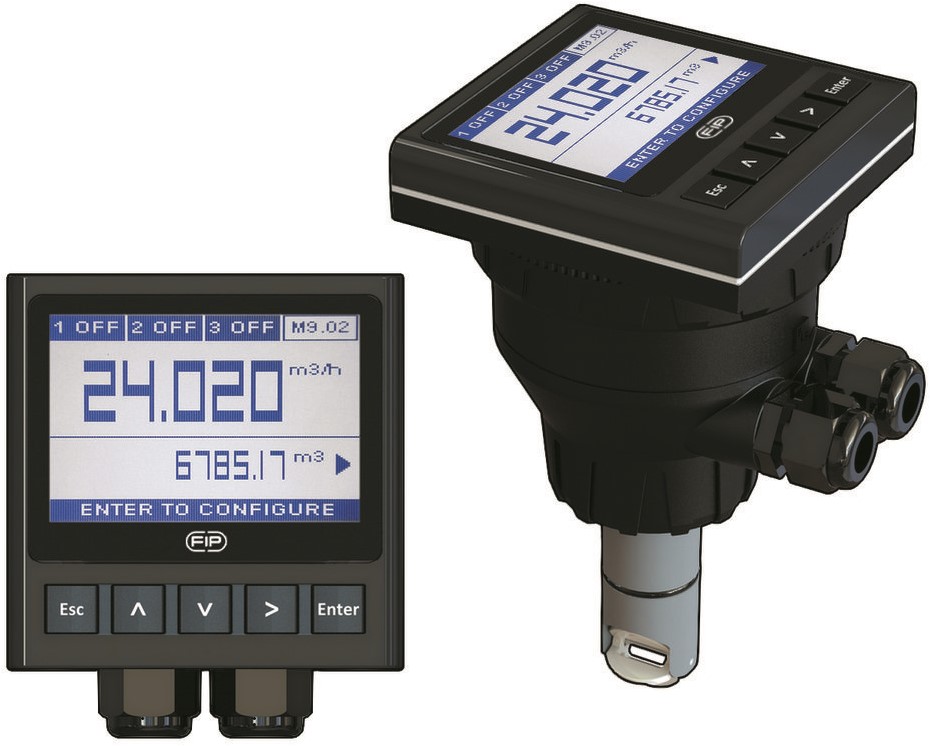

The new FLS M9.00 is a powerful flow monitor and transmitter based on 2-wire technology designed to convert the frequency signal of FLS flow sensors into a flow rate. M9.00 is equipped with a wide 4” display which shows measured values clearly. Moreover the standard backlight improves further the display visibility.
The first procedure will grant a easy set up of main parameters. A flow rate reference can be used for a recalibration or a alignment through a intuitive “in-line calibration”. A 2 wires 4-20mA output combined with a solid state relay allow to remote instant flow rate as well as an alarm. M9.00 is equipped with a USB port which permits a easy updating of instrument software by customer.
MAIN FEATURES
- Wide display
- Bright backlight
- Installation flexibility
- Solid State Relays for programmable alarms
- Multilanguage menu
- USB port for software updating
APPLICATIONS
- Water treatment systems
- Industrial waste water treatment and recovery
- Water distribution
- Filtration systems
- Swimming pools & SPA
- Irrigation & Fertigation
- Leak detection
TECHNICAL DATA
General
- Associated flow sensor: FLS Hall effect with frequency output
- Materials:
- Case: ABS
- Display window: PC
- Panel & Wall gasket: silicone rubber
- Keypad: 5-button silicone rubber
- Display
- transflective technology
- backlight version: mono colour
- backlight activation: available without analog output activation
- Update rate: 1 second
- Enclosure: IP65 front
- Flow input Range (frequency): 0.5 to 500 Hz
- Flow input accuracy: 0,5%
Environmental
- Operating temperature: -20 to +70°C (-4 to 158°F)
- Storage temperature: -30 to +80°C (-22 to 176°F)
- Relative humidity: 0 to 95% not condensing
Standards & Approvals
- Manufactured under ISO 9001
- Manufactured under ISO 14001
- CE
- RoHS Compliant
- GOST R
