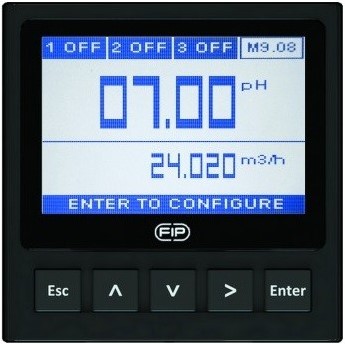

The new FLS M9.08 is a dual monitor which combines pH/ORP and flow measurements. A wide full graphic display
4” shows measured values clearly and a lot of other useful information. Moreover, due to a multicolor display plus a powerful backlight, measurement status can
be determined easily from afar also. A tutorial software guarantees a mistake-proof and fast set up of every settings. Different type of calibrations can be performed to fit user needs for both measurements. A 4-20mA output dedicated to each measurement grants to remote values to a external device. A proper combination of digital outputs allows customized setups for any process to be controlled.
MAIN FEATURES
- Wide graphic display
- Multicolor backlight visualization
- Help on board
- Simultaneous measurement of pH/ORP and flow
- Intuitive calibration procedures
- Mechanical relay for external device control
- Solid State Relays for programmable alarms
- Multilanguages menù
APPLICATIONS
- Water treatment and regeneration
- Industrial waste water treatment and recovery
- Scrubber control
- Neutralization systems
- Heavy metals recovery
- Metal surface coating
- Processing and manufacturing industry
- Chemical production
- Swimming pools and SPA
TECHNICAL DATA
General
- Associated sensors: FLS pH/ORP sensors & FLS hall effect flow sensors with frequency output or FLS F6.60 family sensors
- Materials:
- case: ABS
- display window: PC
- panel & Wall gasket: silicone rubber
- keypad: 5-button silicone rubber
- Display:
- backlight version: 3-colours
- backlight activation: User adjustable with 5 levels of timing
- update rate: 1 second
- enclosure: IP65 front
- pH input range: -2÷16pH
- pH measurement resolution: ± 0.01 pH
- ORP input range: -2000÷ +2000mV
- ORP measurement resolution: ± 1 mV
- Temperature input range: -50÷150°C (-58÷302°F)(with Pt100-Pt1000)
- Temperature measurement resolution: 0,1°C/°F (Pt1000); 0,5°C/°F (Pt100)
- Flow input range (frequency): 0÷1500Hz
- Flow input accuracy (frequency): 0,5%Electrical
- Supply Voltage: 12 to 24 VDC ± 10% regulated
- FLS hall effect flow Sensor power:
- 5 VDC @ < 20 mA
- optically isolated from current loop
- short circuit protected
- 2 x Current output:
- 4-20 mA, isolated, fully adjustable and reversible
- max loop impedance: 1000 Ω @ 24 VDC
- 2 x Solid State Relay output:
- (Flow) user selectable as MIN alarm, MAX alarm, Pulse Out, Window alarm, Off
- (pH/ORP) user selectable as ON-OFF, Proportional frequency output, Timed Pulse, Off
- optically isolated, 50 mA MAX sink, 24 VDC MAX pull-up voltage
- max pulse/min: 300
- hysteresis: User selectable
- 2 x Relay output:
- (Flow) user selectable as MIN alarm, MAX alarm, Pulse Out, Window alarm, Off
- (pH/ORP) user selectable as ON-OFF, Proportional frequency output, Timed Pulse, Off
- mechanical SPDT contact
- expected mechanical life (min. operations): 107
- expected electrical life (min. operations): 105 N.O./N.C.switching capacity 5A/240VAC
- max pulse/min: 60
- hysteresis: user selectable
Environmental
- Operating temperature: -20 to +70°C (-4 to 158°F)
- Storage temperature: -30 to +80°C (-22 to 176°F)
- Relative humidity: 0 to 95% not condensing
Standards & Approvals
- Manufactured under ISO 9001
- Manufactured under ISO 14001
- CE
- RoHS Compliant
- GOST R
