to be installed in tube: 0.5 inch, DN15 tubing size: DN8, 1/4 inch, DN10, 3/8 inch, DN15, 0.5 inch measuring range: 0.38 to 38 l / m maximum nominal pressure: 16 bar at 20 ° C, 232 psig at 68F power supply: 5 to 24 VDC, 1.5mA max. Compatible with: 8550, 8900, 9900, 9900-1BC limit switch kits must be ordered separately; see accessories

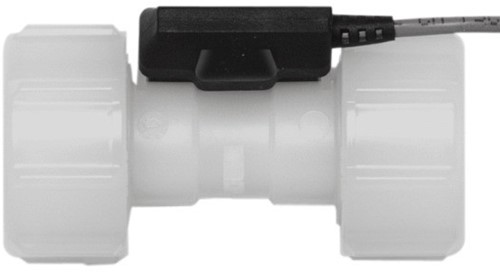

Specially designed for small diameter applications, the Signet 2100 turbine flow sensor offers accurate readings in two flow ranges: 0.3 to 3.8 lpm and 3 to 38 lpm (0.1 to 1 gpm and 0.8 to 10 gpm). The injection molded PVDF housing and ceramic bearings offer excellent chemical compatibility and long life in dosing and batching applications. Connecting cables of the union and hoses together with removable NEMA 4X electronics ensure easy assembly and replacement of the field. The 2100 can be used with DN8 (¼ in.), DN10 (3/8 in.) DN15 (½ in.) Tubes or DN15 (½ in.) Pipes for easy installation. Terminal connections are available in PVDF for hose barbs, fusion socket or IR / butt fusion, and in PVC for socket or NPT thread. Standards: CE China RoHS RoHS conform FCC Application areas: High-purity Chemical Dispensing Textiles Chemical Addition Water Addition Pump Protection dosage Fertigation
