principle: ultrasonic transit time without contact
measuring range: 0.1-10 m / s tube size: d25-115 mm
tube material: plastic and metal
output: 4-20 mA, 4-wire, pulse integrated display and programming keys
voltage: 12-24 V AC / DC
compact integral design simple programming menu simple quick start procedure
Easy to install without special tools
Clamp-on sensors for dry servicing
Large, easy to read graphic display with backlighting

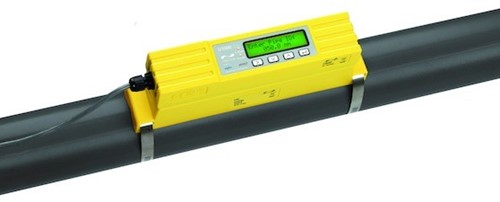

The U1000 is an ultrasonic permanent / fixed clamp-on flow measurement solution for measuring the flow rate. The cost-effective device can be used as an independent meter or as an integral part of a control loop. The U1000 is very easy to install - clamp it to the tube, connect it to power and enter the diameter of the tube. No special skills or resources are required. Thanks to the clamping design, the installation can take place in driving systems without opening the tube, resulting in minimal downtime and maximum availability. The U1000 is compact, robust and reliable and is designed for long-term performance in industrial environments.
Standards:
CE
RoHS conform
Application areas:
flow measurement for heat measurement
process water measurement and heat measurement
ultrapure water measurement
chilled water measurement and heat measurement
Flow measurement for chilled water energy metering
