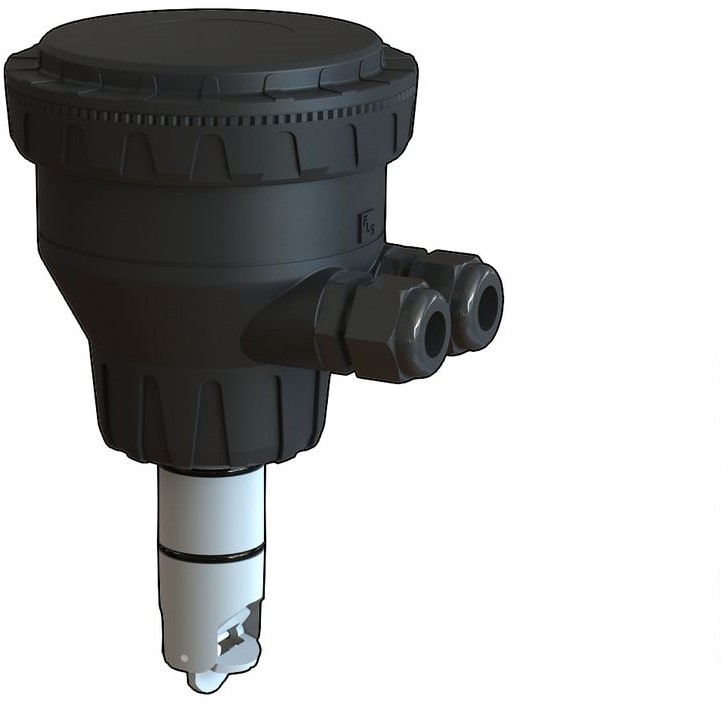

The new FLS F6.30 is a blind transmitter based on paddlewheel. It can be applied for the measurement of every kind of solid-free liquids. The F6.30 can provides different output options using a 4-20 mA and a Solid State Relay. Analog output can be used for long distance transmission and SSR can be set as an alarm or as a volumetric pulse output. F6.30 Paddlewheel Flow Transmitter is provided with an USB interface and a dedicated software (freely downloadable from FLS web site) which allows to easily calibrate instrument and to intuitively set outputs by a PC.
The specific design allows an accurate flow measurement over a wide dynamic range in pipe sizes from DN15 (0.5”) to DN600 (24”).
MAIN FEATURES
- High chemical resistance
- Pipe size range: from DN15 (0,5”) to DN600 (24”)
- Low pressure drop
- Friendly calibration procedure
- 4-20 mA, frequency or volumetric pulse output settable by USB
- SSR settable as alarm by PC
APPLICATIONS
- Industrial water and wastewater treatment
- Cooling water systems
- Swimming pools
- Flow control and monitoring
- Water treatment
- Water regeneration plant
- Processing and manufacturing industry
- Water distribution
TECHNICAL DATA
General
- Pipe Size Range: DN15 to DN600 (0.5” to 24”) Please refer to Installation Fittings section for more details
- Flow Rate Range: 0.15 to 8 m/s (0.5 to 25 ft./s)
- Linearity: ± 0.75 % of full scale
- Repeatability: ± 0.5 % of full scale
- Minimum Reynolds Number Required: 4500
- Enclosure: IP65
- Wetted Materials:
- sensor Body: C-PVC, PVDF or 316L SS
- o-rings: EPDM or FPM
- rotor: ECTFE (Halar®)
- shaft: Ceramic (Al2O3)/ 316L SS (only for metal sensors)
- bearings: Ceramic (Al2O3)
Electrical
- Power Supply:
- 12 to 24 VDC ± 10% regulated (reverse polarity and short circuit protected)
- maximum current: consumption: 150 mA
- protective earth: < 10 Ω
- 1 X Current output:
- 4-20 mA, isolated
- max. loop impedance: 800 Ω @ 24 VDC - 250 Ω @ 12 VDC
- 1 X Solid State Relay output:
- user selectable as MIN alarm, MAX alarm, Volumetric, Pulse Out, Window alarm, Off
- optically isolated, 50 mA MAX sink, 24 VDC MAX pull-up voltage
- max pulse/min: 300
- hysteresis: User selectable
Environmental
- Storage Temperature: -30°C to +80°C (-22°F to 176°F)
- Ambient Temperature: -20°C to +70°C (-4°F to 158°F)
- Relative Humidity: 0 to 95% (non-condensing)
Standards & Approvals
- Manufactured under ISO 9001
- Manufactured under ISO 14001
- CE
- RoHS Compliant
- GOST R
