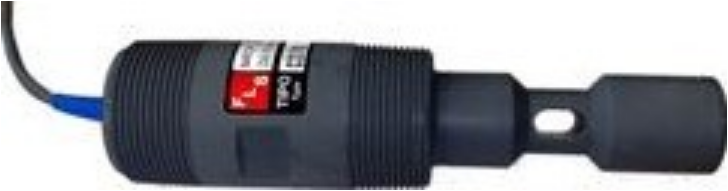

FLS C6.30 is a family of inductive conductivity transmitters which are made by a 4-20mA output device (two wire technology) integrated onto an inductive conductivity sensor. This type of measurement technology allows a broad range of applications especially to measure high values of conductivity (till 1000 millisiemens) in aggressive fluids (PVCC is the only wetted material). As no electrodes are directly in contact with liquid, a reliable and stable measurement is guaranteed for a long operating time. A proper automatic temperature compensation (ATC) is granted by a Pt100 integrated into instrument body. The isolated 4-20mA output is perfect for direct connections to PLCs or data loggers without any extra interfaces. Transmitter as well as temperature sensor are supplied already calibrated.
Main features:
- Corrosion & coating resistant
- Compact transmitter
- No calibration required
- Easy installation
- Pt100 sensor integrated
- Suitable for submersible installation
Applications:
- Water treatment
- Waste water treatment
- Cooling towers
- Scrubber systems
- Metal finishing Coating and corrosion fluid measurement
Technical data
General
- Body Material: C-PVC
- Body length: 207mm
- Enclosure: IP68
- Power supply: 10-30 VDC regulated
- Max Working pressure/Working Temperature:
- 10bar (145psi) @ 25°C (77°F)
- 6bar (87psi) @ 50°C (122°F)
- Process connection: 1 ½” male NPT
Normen en goedkeuringen
• Vervaardigd volgens ISO 9001
• Vervaardigd volgens ISO 14001
• CE
• RoHS conform
• GOST R
