- With rack and pinion gear unit
- Size 10 ... 480
- Torque 10 ... 480 Nm
- Swivel angle 0 ... 90°, 0 ... 180°
- Flange hole pattern to ISO 5211
- NAMUR connection pattern for solenoid valves/sensor boxes to VDI/VDE 3845

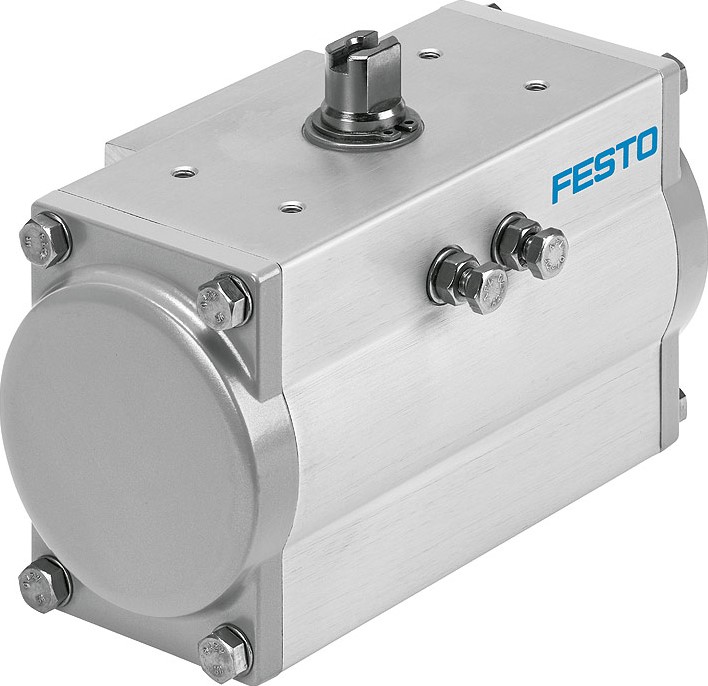

The DFPD series has a rack and pinion combination with a constant torque characteristic over the entire swivel range. The torque range is from 10 to 480 Nm. The DFPD Quarter-turn actuators are suitable for the automation of butterfly valves, ball valves and air dampers. They are also suitable for water / waste water, beverage, pharmaceutical and process automation. The modular and compact design of the DFPD allows different spring configurations as a suitable solution for different applications.
| swivel direction |
Both left and right |
| swivel angle |
90°, 180° |
| Temparature (°C) |
– ... Standard
T4: 0 ... +150
T6: –50 ... +60
|
