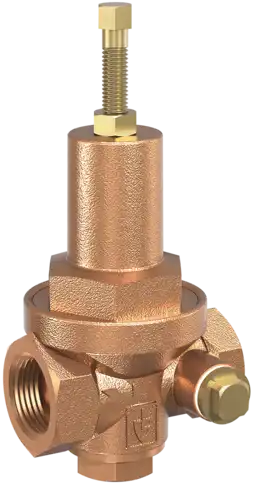

683 Pressure reducing valves made of gunmetal, with female threaded connections
This pressure reducing valve serves as an alternative to larger versions in cases where only small flow volumes are needed or the medium in question is compressed air.
With a maximum outlet pressure of 50 bar, the pressure reducing valve is used, for example, to regulate starting air on ships. It goes without saying that it has all the necessary maritime approvals from various authorities such as Germanischer Lloyd, etc. This valve is widely used in many industrial applications, especially for compressed air and neutral gases.
For the protection of:
- Commercial and industrial installations
- Against excessive supply pressure
Pressure regulators are applied when, despite fluctuating pressures on the inlet side, a certain pressure on the outlet side must not be exceeded within a piping system.
Applications include:
- Air supply installations
- Pneumatic control units
- Pressure boosting installations on the air side
- Shipbuilding industry and offshore installations
An optional pressure gauge is available for the set pressure.
IMPA CODE
- IMPA CODE: 756571
- IMPA CODE: 756572
- IMPA CODE: 756573
- IMPA CODE: 756574
- IMPA CODE: 756575
