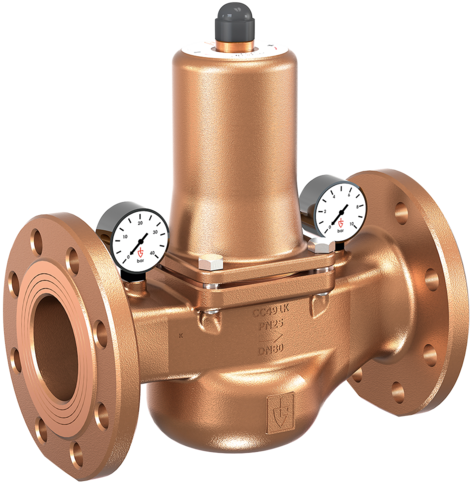

682 Pressure reducing valves made of gunmetal, with flange connections
Often, flange pressure reducing valves with smaller connection sizes are needed. Therefore, this type is now available not only in sizes DN65 and DN100 but also in sizes DN20 to DN50 in both high and low-pressure versions.
The housing is entirely made of corrosion-resistant and seawater-resistant bronze. All wetted parts are made of bronze or corrosion-resistant stainless steel. All technical features of the stainless steel version are consistently incorporated in this version as well.
For the protection of:
- Domestic water supply systems
- Commercial and industrial installations
- Against excessive supply pressure
Pressure regulators are used when, despite changing pressures on the inlet side, a certain pressure on the outlet side must not be exceeded within a piping system.
- Drinking water supply according to DIN 1988
- Process water supply in industrial and construction technology
- Firefighting equipment and sprinkler installations
- Shipbuilding industry and offshore installations
IMPA CODE
- IMPA CODE: 756554 - 682mGFO-LP 20 FL/FL 20/20 PN40 (+ required sealing material)
- IMPA CODE: 756555 - 682mGFO-SP 65 FL/FL 65/65 PN16 (+ required sealing material)
- IMPA CODE: 756556 - 682mGFO-SP 65 FL/FL 65/65 PN40 (+ required sealing material)
- IMPA CODE: 756557 - 682mGFO-SP 80 FL/FL 80/80 PN40 (+ required sealing material)
- IMPA CODE: 756558 - 682mGFO-LP 25 FL/FL 25/25 PN40 (+ required sealing material)
- IMPA CODE: 756559 - 682mGFO-LP 32 FL/FL 32/32 PN40 (+ required sealing material)
- IMPA CODE: 756560 - 682mGFO-LP 40 FL/FL 40/40 PN40 (+ required sealing material)
- IMPA CODE: 756567 - 682mGFO-LP 50 FL/FL 50/50 PN40 (+ required sealing material)
- IMPA CODE: 756568 - 682mGFO-SP 20 FL/FL 20/20 PN40 (+ required sealing material)
- IMPA CODE: 756569 - 682mGFO-SP 25 FL/FL 25/25 PN40 (+ required sealing material)
- IMPA CODE: 756570 - 682mGFO-SP 32 FL/FL 32/32 PN40 (+ required sealing material)
- IMPA CODE: 756576 - 682mGFO-SP 40 FL/FL 40/40 PN40 (+ required sealing material)
- IMPA CODE: 756577 - 682mGFO-SP 50 FL/FL 50/50 PN40 (+ required sealing material)
- IMPA CODE: 756578 - 682mGFO-HP 20 FL/FL 20/20 PN40 (+ required sealing material)
- IMPA CODE: 756579 - 682mGFO-HP 25 FL/FL 25/25 PN40 (+ required sealing material)
- IMPA CODE: 756580 - 682mGFO-HP 32 FL/FL 32/32 PN40 (+ required sealing material)
- IMPA CODE: 756581 - 682mGFO-HP 40 FL/FL 40/40 PN40 (+ required sealing material)
- IMPA CODE: 756582 - 682mGFO-HP 50 FL/FL 50/50 PN40 (+ required sealing material)
