Product description
Material: stainless steel
Pressure class: PN6 - PN40
Size: DN15-DN300
Temperature range: -20° ~ 300°
Seal: metal / NBR / EPDM / FPM / PTFE

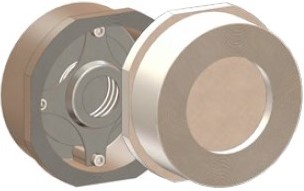

The EB930 check valve is available in different materials for both the housing and the valve. This valve must be mounted between two flanges according to EN 1092-1 Form B1, PN6 - 40 norm. The Disco type check valve operates on the basis of a spring that pushes the valve closed when the fluid starts to flow in the wrong direction. Temperature range for the EB930 is between -20 ° and 300 ° and the pressure range between 0 - 40 bar.
