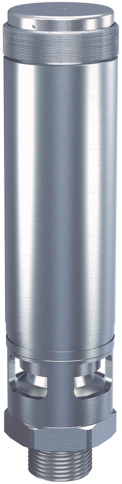

412 Safety valves made of stainless steel, atmospheric discharge with threaded connections
This high-quality stainless steel spring-loaded safety valve is unique in its class.
Its slim and elegant exterior conceals the highest level of precision and performance.
Simultaneously, this valve can be ordered with a set pressure of up to 40 bar.
Suitable for:
air and gases that can be freely discharged into the environment.
To protect:
Pressure tanks and pressure systems for air and other neutral, non-toxic, and non-flammable gases that can be freely discharged into the environment.
Please observe the installation-specific regulations and use an appropriate valve design and sealing material.
Applications include:
- Pneumatic control units
- Air-side pressure boosting installations
- Wastewater treatment plants
- Traffic and railway technology
- Pneumatic brake systems
- Secondary areas in the food, pharmaceutical, and cosmetic industries
Safety valves are set and sealed at the factory.
IMPA CODE:
- 757364
- 757365
- 757366
- 757367
- 757368
- 757369
