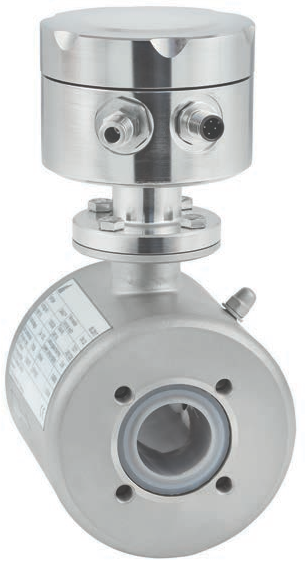

Magnetisch-induktives Durchflussmessgerät VolumMess
For the measurement of flow and volume of conductive liquids and viscous media, VolumMess offers the ideal solution for filling systems and dosing. The features of this extremely compact device with a small transmitter assembly include:
- Construction entirely made of stainless steel
- IP67 protection class according to Hygienic Design
- Active pulse output and analog output 4-20mA
- Nominal sizes DN10 – DN150
- Flow ranges from 30l/h to 640m³/h
- Measurements possible in both flow directions
- Typical accuracy of ±0.5% FS
- Product temperatures from 0…100°C; 130°C for 30 minutes
- Integrated empty pipe detection to avoid undefined counting in empty pipelines
- Vacuum stability even at higher temperatures
- Pigging capability
- Process connection DIN11864/2 Form A
- Adapter for welding sockets, DIN11851, clamp, etc.
Variant 1 comes without a display and is factory-parametrized, displaying three operational states (color-coded). Variant 2 with a display allows configuration via three optical buttons without opening the housing and user-friendly parameterization through "Quickstart" and simple language switching.
