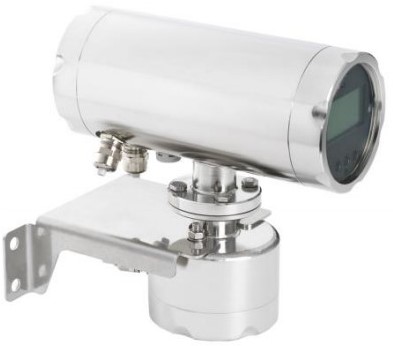

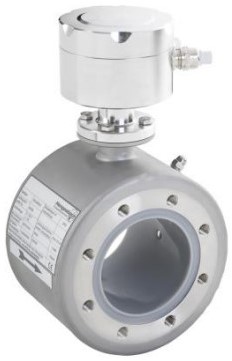

Magnetic-inductive flow meter VOLUMTEC
Features:
The VOLUMTEC magnetic-inductive flowmeter is constructed according to hygienic design standards, featuring an all-stainless steel build with IP67 protection class.
It is available in nominal diameters DN10 to DN150, offering a flow range of 20 l/h to 640 m³/h and a pressure range of 0.1 to 11 bar abs.
The accuracy is typically ±0.25%, allowing measurement in both flow directions.
The flowmeter provides pulse and analog output options (4-20 mA), which can be configured in either active or passive mode.
The illuminated LC-Display is adjustable, and the electronics are self-monitoring with automatic readjustment.
The process connection utilizes an aseptic-flange with a modular connection system for pipe adapters, ensuring adaptability and ease of integration into different systems.
