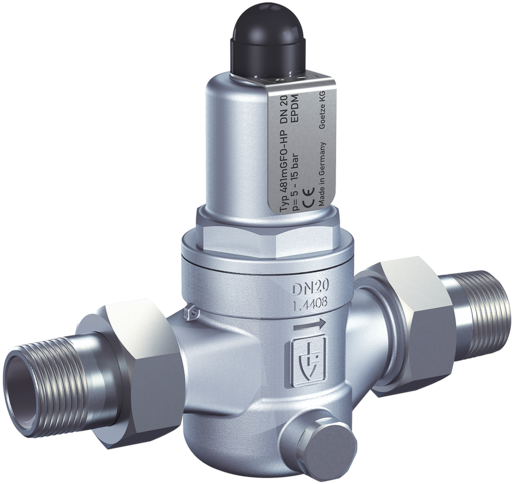

Pressure Reducing Valves Type 481 Stainless Steel with Threaded Connections
New applications can now be covered by Goetze's proven, robust pressure reducing valve with threaded connections as the source series 681 has been expanded with a stainless steel version. The new 481 offers all the advantages of the 681 - and is simultaneously resistant to very critical and aggressive medium environments. Additional outlet pressure ranges from 0.5 to 2 bar and 5 to 15 bar make this valve suitable for an even wider range of applications.
For the protection of:
- Domestic water supply systems
- Commercial and industrial installations
- Against excessive inlet pressure.
Pressure regulators are applied when, despite fluctuating pressures on the inlet side within a piping system, a certain pressure on the outlet side must not be exceeded.
Applications include:
- Drinking water supply according to DIN 1988
- Process water supply in industrial and construction engineering
- Snow cannons
- Firefighting agents and sprinkler installations
- Shipbuilding industry and offshore installations
- Secondary areas in the food, pharmaceutical, and cosmetic industry
IMPA CODE
- IMPA CODE: 756919
- IMPA CODE: 756920
- IMPA CODE: 756927
- IMPA CODE: 756928
- IMPA CODE: 756929
- IMPA CODE: 756930
- IMPA CODE: 756937
- IMPA CODE: 756938
- IMPA CODE: 756939
- IMPA CODE: 756940
- IMPA CODE: 756949
- IMPA CODE: 756950
- IMPA CODE: 756959
- IMPA CODE: 756960
- IMPA CODE: 756968
- IMPA CODE: 756969
- IMPA CODE: 756970
- IMPA CODE: 756978
