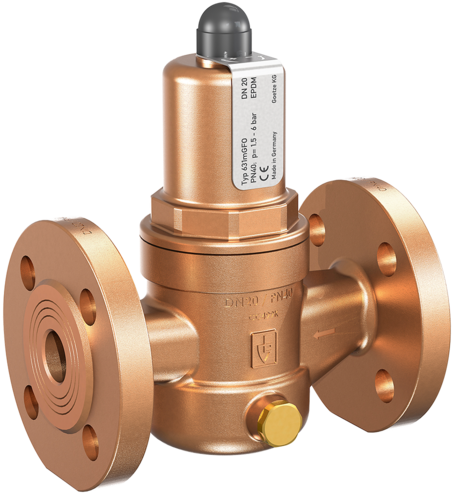

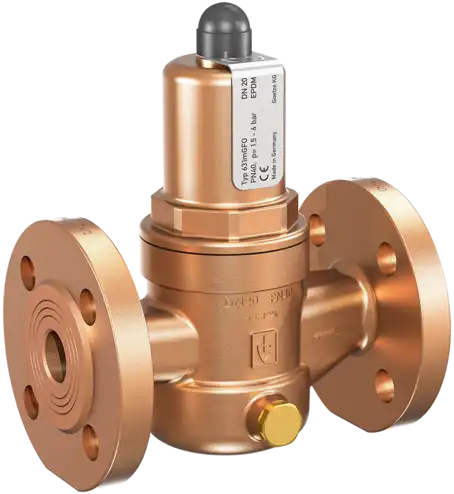

631 Overflow and pressure control valves made of gunmetal, straightway form, with flange connections
In cases where flange connections are required, this valve offers the same features as the 630 version.
The robust all-metal design makes this valve ideal for heavy-duty operational and environmental conditions when sensitive control is required. The set pressure is easy to read on the (optional) pressure gauge.
For the protection of:
- Pumps against overload in closed circuits for neutral/non-neutral and non-adhesive liquids
For the control of:
- Systems under pressure for air, neutral/non-neutral gases, and vapors
- Industrial installations
- Power plant technology
- Pump stations
- Machine engineering
IMPA CODE
IMPA Part No. 757199 631mGFO 15 FL / FL 15/15 PN 40 (+ required sealing material)
IMPA Part No. 757209 631mGFO 20 FL / FL 20/20 PN 40 (+ required sealing material)
IMPA Part No. 757210 631mGFO 25 FL / FL 25/25 PN 40 (+ required sealing material)
IMPA Part No. 757218 631mGFO 32 FL / FL 32/32 PN 40 (+ required sealing material)
IMPA Part No. 757219 631mGFO 40 FL / FL 40/40 PN 40 (+ required sealing material)
IMPA Part No. 757220 631 mGFO 50 FL / FL 50/50 PN 40 (+ required sealing material)
IMPA Part No. 757227 631mGFO 65 FL /FL 65/65 PN 16 (+ required sealing material)
IMPA Part No. 757228 631mGFO 65 FL /FL 65/65 PN 40 (+ required sealing material)
IMPA Part No. 757229 631mGFO 80 FL /FL 80/80 PN 40 (+ required sealing material)
IMPA Part No. 757200 631mGFO 100 FL / FL 100/100 PN 40 (+ required sealing material)
