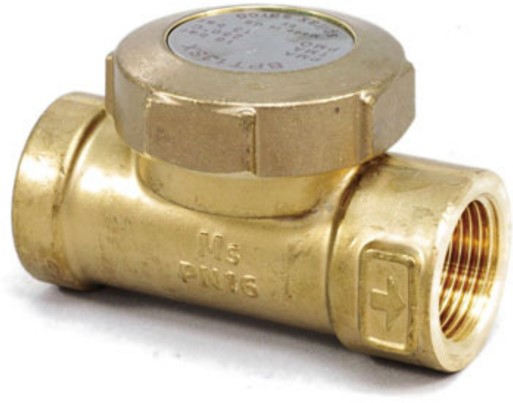

BPT13 Thermostatic Steam Trap
Revisable thermostatic steam trap of the pressure balanced type with a brass housing.
Model Options: BPT13A: Angled connections
BPT13AX: Angled connections with built-in filter
BPT13S: Straight connections
BPT13SX: Straight connections with built-in filter
BPT13UA: Angled connections with inlet coupling
BPT13UAX: Angled connections with inlet coupling and filter
BPT13US: Straight connections with inlet coupling
BPT13USX: Straight connections with inlet coupling and filter
Capsule Filling and Operation:
The standard capsule is marked with the letter 'STD' for operation at approximately 12C below the saturated steam temperature. Upon request, the steam trap can be supplied with a 'SUB' capsule (operation approximating 24C below the saturated steam curve) or with an 'NTS' capsule (4C subcooling).
Standards:
This product fully complies with the European Pressure Equipment Directive 97/23/EC (PED).
Certificates:
At an additional cost, this steam trap is available with a 'Test Report'. Certificates must always be requested when placing an order.
Diameters and Connections: 3/8
and internal thread BSP (BS 21 parallel)
NPT
Pressure and temperature limits (ISO 6552):
see datasheet
Specification:
Thermostatic pressure balanced steam trap Spirax Sarco type BPT13AX BSP. Brass housing with internal strainer and "STD" capsule for operation at 12C subcooling.
