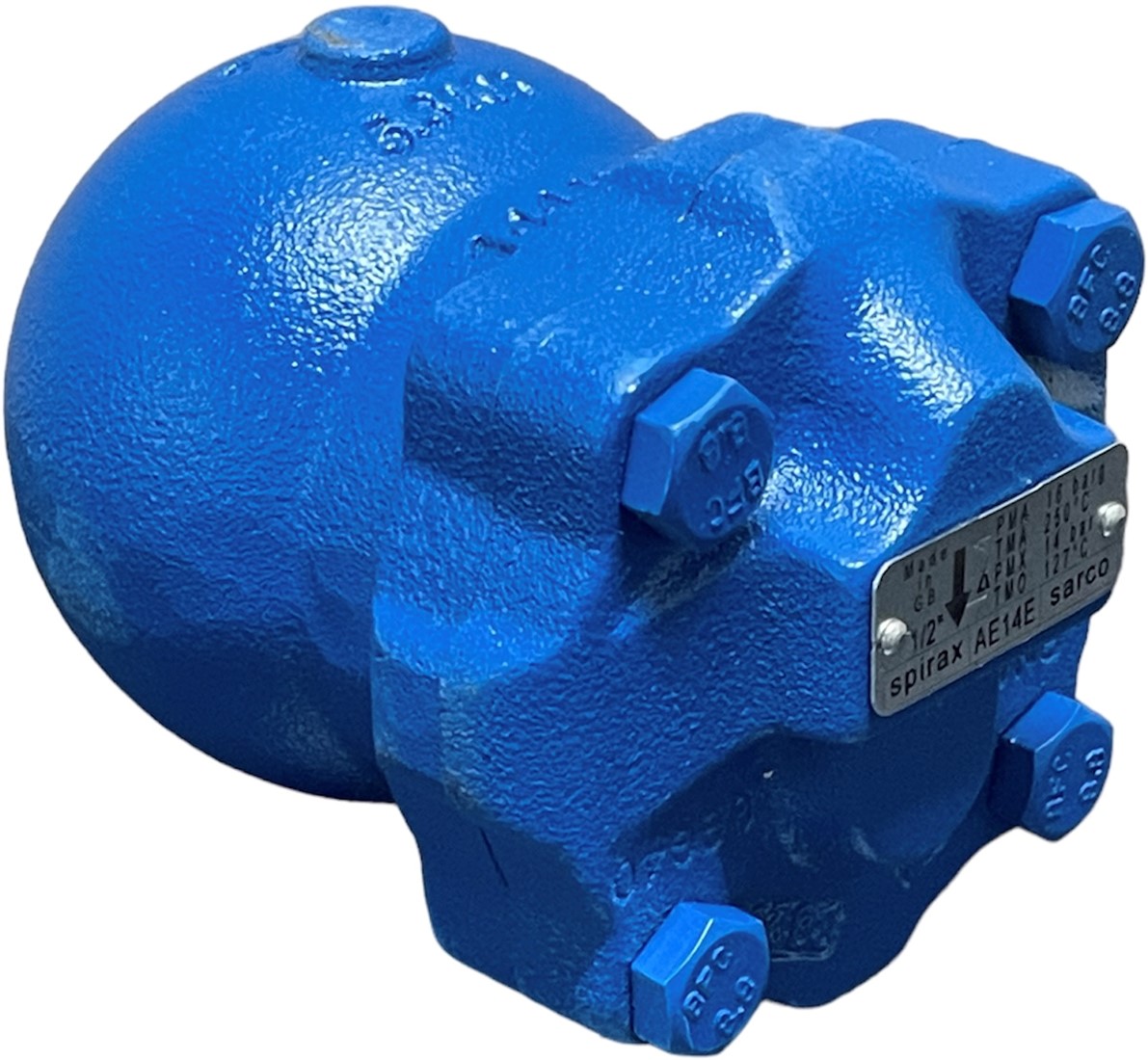

AE14 Automatic Air Vent – Spirax Sarco
The AE14 from Spirax Sarco is an automatic air vent for liquid systems. It is a robust and serviceable solution that automatically removes air and gases from fluid-filled pipes and equipment without losing any liquid.
Working Principle
The AE14 operates on a sealed float mechanism. When air accumulates, the liquid level inside drops, opening the valve to vent the air. Once liquid returns, the float rises and closes the valve. The process is fully automatic and requires no manual intervention.
Versions
| Type |
Valve Material |
Max. Temperature |
Remarks |
| AE14 |
Viton |
200 C |
Standard version |
| AE14E |
EPDM |
127 C |
For glycol and similar fluids |
| AE14S |
Stainless steel |
250 C |
For aggressive or critical fluids |
| AE14SV |
Viton |
200 C |
With integrated stop valve |
| AE14ESV |
EPDM |
127 C |
With integrated stop valve |
Technical Specifications
- Maximum working pressure: 16 bar
- Maximum working temperature: up to 250 C (depending on version)
- Connections: ½" or ¾" BSP or NPT female thread
- Minimum specific gravity of liquid: 0.6 kg/dm³
- Body design pressure: PN16, hydrostatic test pressure: 24 bar
Applications
- Cooling water circuits
- Central heating and hot water systems
- Hydraulic circuits
- Condensate lines (without steam)
- Expansion or buffer tanks
Target Industries
- Food & beverage
- Pharmaceutical and chemical industries
- OEM and machinery builders
- HVAC and building services
- Utilities and energy sector
Benefits
- Automatic and reliable air removal
- Prevents cavitation and corrosion
- Serviceable and maintenance-friendly
- Compact and easy to install
Installation
Install vertically above the point where air collects, with the inlet facing downward. For dirty systems, a drip line
